Getting started

Desktop

Download the latest build from the releases page, or build it yourself with stable Rust (1.90 or newer):

git clone https://github.com/bherbruck/solvecraft && cd solvecraft
cargo run --release -p solvecraft -- --sample   # opens with a sample part

solvecraft part.step opens a STEP, IGES, 3MF, STL or OBJ file as a new design, and solvecraft design.solvecraft opens a saved design. Windows builds cross-compile from Linux with cargo xwin build --release --target x86_64-pc-windows-msvc -p solvecraft.

Web

The same app runs in the browser: open SolveCraft on the web (?sample opens the sample part, ?webgl forces WebGL2 where WebGPU is missing). Designs are saved in the browser’s private file storage, which needs HTTPS or localhost. To build it yourself:

rustup target add wasm32-unknown-unknown
cd apps/solvecraft-web && trunk serve --release

CLI

solvecraft-cli runs the same commands without a window:

cargo run --release -p solvecraft-cli -- commands                       # every command, as JSON
cargo run --release -p solvecraft-cli -- run examples/bracket.json --out bracket.step
cargo run --release -p solvecraft-cli -- eval examples/bracket.json     # volume, area, faces…

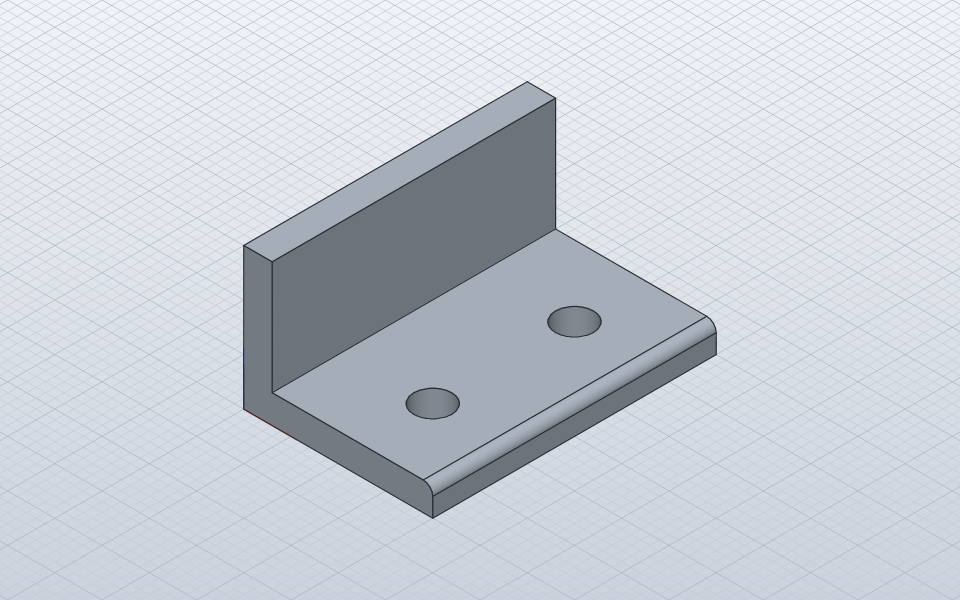

cargo run --release -p solvecraft-cli -- snapshot examples/bracket.json --out bracket.png
cargo run --release -p solvecraft-cli -- exec solid.box '{"length": 20, "width": 10, "height": 5}'

A script is a list of commands:

{"commands": [
  {"command": "sketch.create", "params": {"plane": "XY"}},
  {"command": "sketch.rectangle.two_point", "params": {"p0": [0, 0], "p1": [40, 30]}},
  {"command": "sketch.finish", "params": {}},
  {"command": "solid.extrude", "params": {"distance": 20}},
  {"command": "solid.fillet", "params": {"edges": [[0, 0, 10]], "radius": 3}}
]}

Units are millimetres and degrees unless an expression says otherwise ("1 in", "30 deg"), and Z is up.
